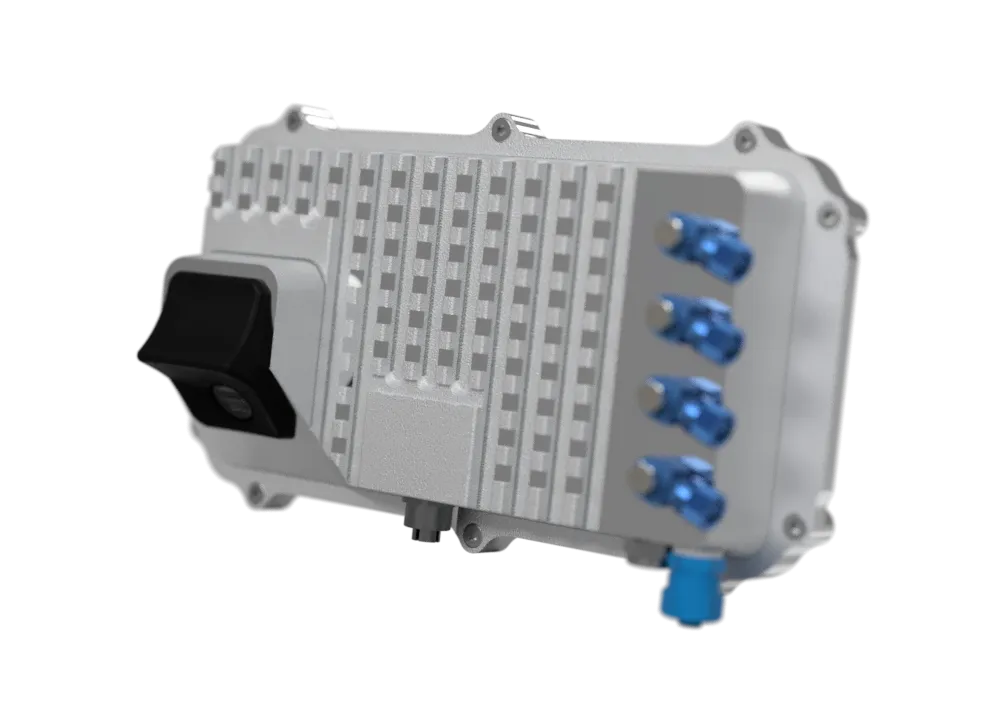

ATAR Smart Sprayer Module

Retrofit your existing sprayer with AI intelligence. Detects weeds in real-time and controls up to 4 nozzles with millisecond precision to reduce chemical use by up to 95%.

Onboard AI Processor
4 × ø4 mm Pneumatic Outputs
Profile-specific clamp brackets (40/50/60/80 mm & custom)
Sealed waterproof cast aluminium housing with glass lens protection

Specifications:

Dimensions (W × H × D)	230 × 130 × 60 mm
Weight	1300 g
Housing material	Cast Aluminium, Stainless Steel (inox) fasteners
Camera lens protection	High-durability glass window with rubber shroud
Camera angle	Fixed 45-degree forward-looking angle
Power & Data	PoE (Power over Ethernet), M12 X-coded 8-pin
Cable specification	LAPP ETHERLINE® FD P BK CAT.5 (4x2x26/19 AWG)
Maximum supply voltage	57 V DC
Air supply inlet	Quick-connect, ø6 mm hose (4 – 6 bar)
Nozzle control outputs	4 × ø4 mm pneumatic outputs (VSV Micro valves)
Internal valve orifice	1.4 mm / 1.9 mm orifice at 6 bar
Operating temperature	–20 °C to +50 °C ambient
Standard module spacing	200 cm (50 cm nozzle pitch) or 100 cm (25 cm pitch)

450.00 €

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

ATAR-MODULE-v2.3_Mounting_Guide_EN_v0.2.docx
